RGU178 — AM/FM MALE to F FEMALE
Extends or adapts AM/FM vehicle antenna signals using ultra-thin RGU178 cable for in-dash installations.
Cable
RGU178
End A
AM/FM MALE
End B
F FEMALE
Used For
Car Radio Antenna Extension
The AM/FM DIN male connector is standard on car radios and head units. The F female end connects to standard coax or antenna adapters. RGU178 is preferred for in-dash installs due to its minimal diameter and flexibility for routing through tight door and dash cavities.
Specs Summary
Made in USA
Assembled and tested in-house
Free Shipping
Fast, reliable delivery
Tested & Verified
Every cable tested before shipping
Easy Returns
30-day hassle-free returns
Still need help? Talk to an expert.
Our RF team is happy to point you in the right direction.
Call an RF expert
1-661-200-0771
Email us
sales@wifiexpert.us
Need a custom cable?
Build your exact cable in seconds using our Cable Builder.
About This Assembly
Specs Summary

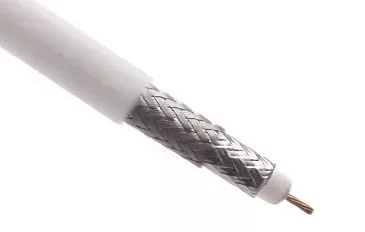

RGU178 Cable
RGU-178 is an ultra-flexible variant of the RG-178 coaxial cable, retaining the 1.75mm form factor while featuring a stranded center conductor and flexible jacket for repeated bending. It excels in applications requiring both a small footprint and mechanical durability, such as wearable devices, rotating joints, and flexible test leads.
Misc Connector
This connector type includes specialized or application-specific RF connectors designed for particular equipment or industries. These may include 2.4mm, 2.92mm (K), 1.85mm (V), SMP, SSMP, or proprietary interface types used in precision microwave measurement, defense electronics, and specialized RF subsystems.
F Connector
The F connector is a low-cost threaded coaxial connector used almost exclusively in cable TV, satellite, and over-the-air broadcast applications. It uses the center conductor of RG-6 or RG-59 cable as the pin, which simplifies termination and reduces cost. F connectors are found on cable modems, satellite receivers, TV tuners, and distribution amplifiers.
Common Applications
This F and Misc cable assembly is well suited for flexible pigtails for compact modules and repeated-bend applications. The combination of reliable F and Misc connectors and custom-cut cable length makes it a practical choice for both field installations and bench setups. Every assembly is hand-terminated, continuity tested, and ships free within the USA.
RGU178 Signal Loss
Approximate attenuation at common RF frequencies.
| Frequency | Loss / 100 ft | Loss / ft |
|---|---|---|
| 100 MHz | 9 dB | 0.09 dB |
| 450 MHz | 19.5 dB | 0.195 dB |
| 900 MHz | 28.5 dB | 0.285 dB |
| 1.8 GHz | 41 dB | 0.41 dB |
| 2.4 GHz | 48 dB | 0.48 dB |
| 5.8 GHz | 78 dB | 0.78 dB |
Frequently Asked Questions
What is RGU178 coaxial cable used for?
RGU-178 is an ultra-flexible variant of the RG-178 coaxial cable, retaining the 1.75mm form factor while featuring a stranded center conductor and flexible jacket for repeated bending. It excels in applications requiring both a small footprint and mechanical durability, such as wearable devices, rotating joints, and flexible test leads.
What is the signal loss of RGU178?
At 1800 MHz, RGU178 has approximately 41 dB of loss per 100 ft (0.41 dB/ft).
What frequency range does this assembly support?
This assembly is rated DC – 2 GHz, limited by the lowest-rated component across the cable and connectors.
What is a Misc connector?
This connector type includes specialized or application-specific RF connectors designed for particular equipment or industries. These may include 2.4mm, 2.92mm (K), 1.85mm (V), SMP, SSMP, or proprietary interface types used in precision microwave measurement, defense electronics, and specialized RF subsystems.
