Pro Stick USB ADS-B Receiver + 1090MHz Band-pass Filter from FlightAware

$48.99

Includes:

1 (One) FlightAware Pro Stick USB ADS-B Receiver from FlightAware

and

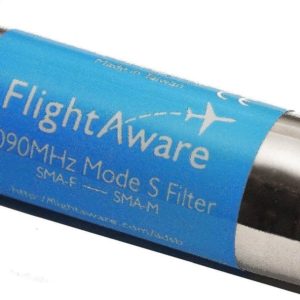

1 (One) ADS-B 1090MHz Band-pass SMA Filter from FlightAware.

SMA (female to male) 1090MHz Mode S filter. Designed to reduce interference and significantly improve valid mesage rate of ADS-B/Mode S receivers. Passes range 980MHz – 1150MHz. Impedance is 50ohms and insertion loss is <2.5dB.

If you need cable please contact us, we can make any length and any type.

  • FILTER
  • 1090MHZ ADS-B / Mode S Filter
  • SMA Female to SMA Male

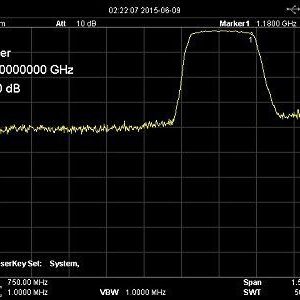

  • Passes range 980MHz – 1150MHz
  • Reduces RF noise, increasing number of ADS-B/Mode S messages
  • Ideal for RTL-SDR USB Dongle receivers like PiAware
  • USB PRO STICK:
  • 20dB Integrated Amplifier which can increase your ADSB range 30-100% more compared to other dongles
  • Requires FlightAware ADS-B Filter or modified dump1090 gain settings
  • Supported by PiAware
  • R820T2 RTL2832U chips
  • USB powered, 5V @ 150mA
