Cable
RFC195
End A
N MALE
$1.50
End B
TNC MALE
$1.00
RFC195 — N MALE to TNC MALE
Custom RFC195 cable assembly with N MALE and TNC MALE connectors. Every cable is hand-assembled, tested, and ships free.
| Length | Price | |
|---|---|---|
| 1 ft | $9.49 | |
| 6 ft | $15.24 | |
| 25 ft | $37.09 | |
| 50 ft | $65.84 | |
| 100 ft | $123.34 | |
| 250 ft | $295.84 |
Specs Summary
About This Assembly

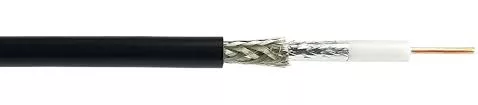

RFC195 Cable
RFC-195 is a budget-friendly 50-ohm coaxial cable with a 0.195" outer diameter that provides good performance for short-to-medium runs at a lower price than LMR-195. Suitable for antenna jumpers, two-way radio leads, and WiFi access point connections up to 30 feet where cost efficiency is the primary consideration.
N Connector
Type N is a threaded RF connector rated from DC to 18 GHz with a durable weatherproof design, making it the preferred interface for outdoor antenna installations, cellular base stations, and commercial wireless infrastructure. Its larger size compared to SMA allows higher power handling and the threaded coupling resists vibration, making it suitable for mobile and fixed outdoor applications.
TNC Connector
TNC (Threaded Neill–Concelman) is the threaded version of BNC, offering improved performance up to 11 GHz and better vibration resistance through its screw coupling. It is commonly used in mobile radio antennas, avionics, and outdoor installations where BNC's bayonet lock would not provide sufficient mechanical security.
Common Applications
This N and TNC cable assembly is well suited for short-to-medium antenna jumpers and budget wireless installations. The combination of reliable N and TNC connectors and custom-cut cable length makes it a practical choice for both field installations and bench setups. Every assembly is hand-terminated, continuity tested, and ships free within the USA.
