Cable
RFC400
End A
PL259 UHF Male
$3.00
End B
PL259 UHF Male
$3.00
RFC400 — PL259 UHF Male to PL259 UHF Male
Custom RFC400 cable assembly with PL259 UHF Male and PL259 UHF Male connectors. Every cable is hand-assembled, tested, and ships free.
| Length | Price | |
|---|---|---|
| 1 ft | $17.99 | |
| 6 ft | $25.49 | |
| 25 ft | $53.99 | |
| 50 ft | $91.49 | |
| 100 ft | $166.49 | |
| 250 ft | $391.49 | |
| 500 ft | $766.49 |
Specs Summary
About This Assembly

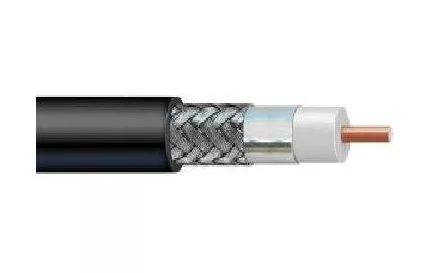

RFC400 Cable
RFC-400 is a cost-effective 0.400" 50-ohm low-loss coaxial cable serving as a value-oriented alternative to LMR-400. It delivers strong performance on runs from 50 to 200 feet and is popular for cellular repeater trunk cables, outdoor antenna feedlines, and budget-conscious infrastructure deployments.
UHF Connector
The UHF connector (also known as PL-259 male / SO-239 female) is a large, low-cost RF connector designed in the 1930s for HF and VHF frequencies. Despite its name, its practical usable range is below 300 MHz due to its non-constant impedance design. It remains extremely popular in amateur radio (HF through VHF), CB radio, and marine radio applications.
Common Applications
This UHF cable assembly is well suited for cost-effective long antenna runs, cellular repeater trunk cables, and outdoor feedlines. The combination of reliable UHF connectors and custom-cut cable length makes it a practical choice for both field installations and bench setups. Every assembly is hand-terminated, continuity tested, and ships free within the USA.
